APEX Tec-Valve Trim PRO Line / NPSM / Air 232

SKU: 600185-US

Description

APEX Tec-Valve Trim PRO Line | Air 232 | 3/4″ NPSM with burst disc

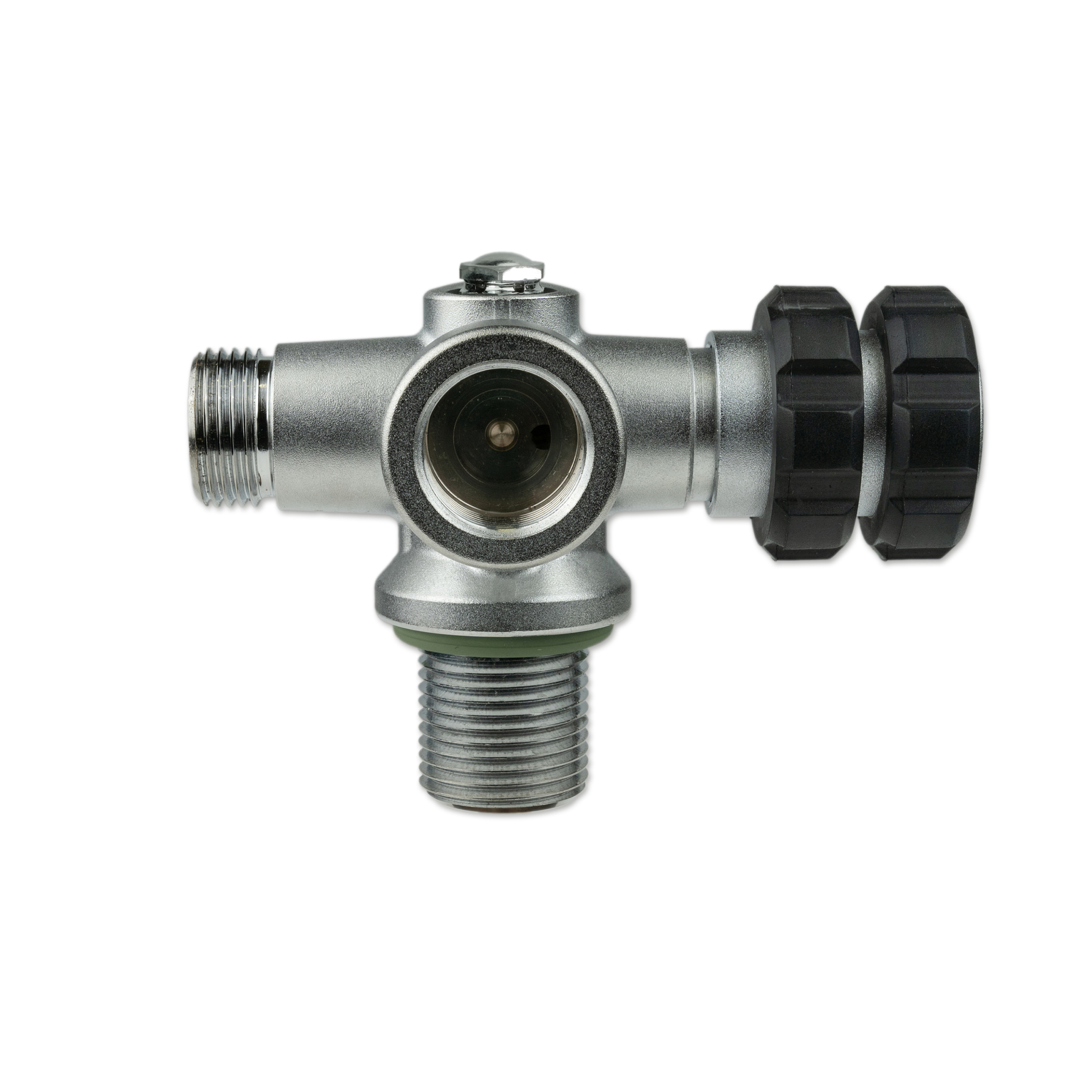

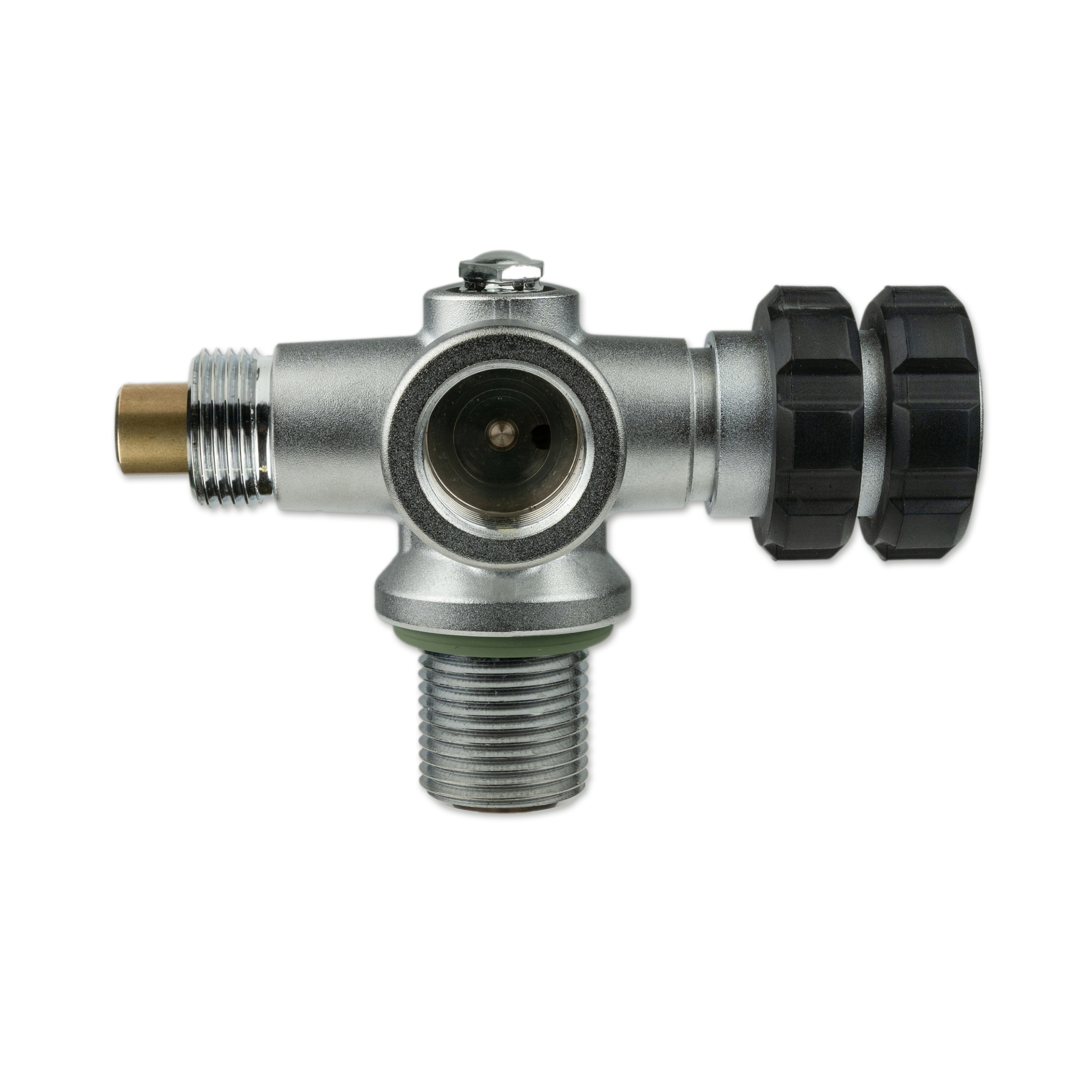

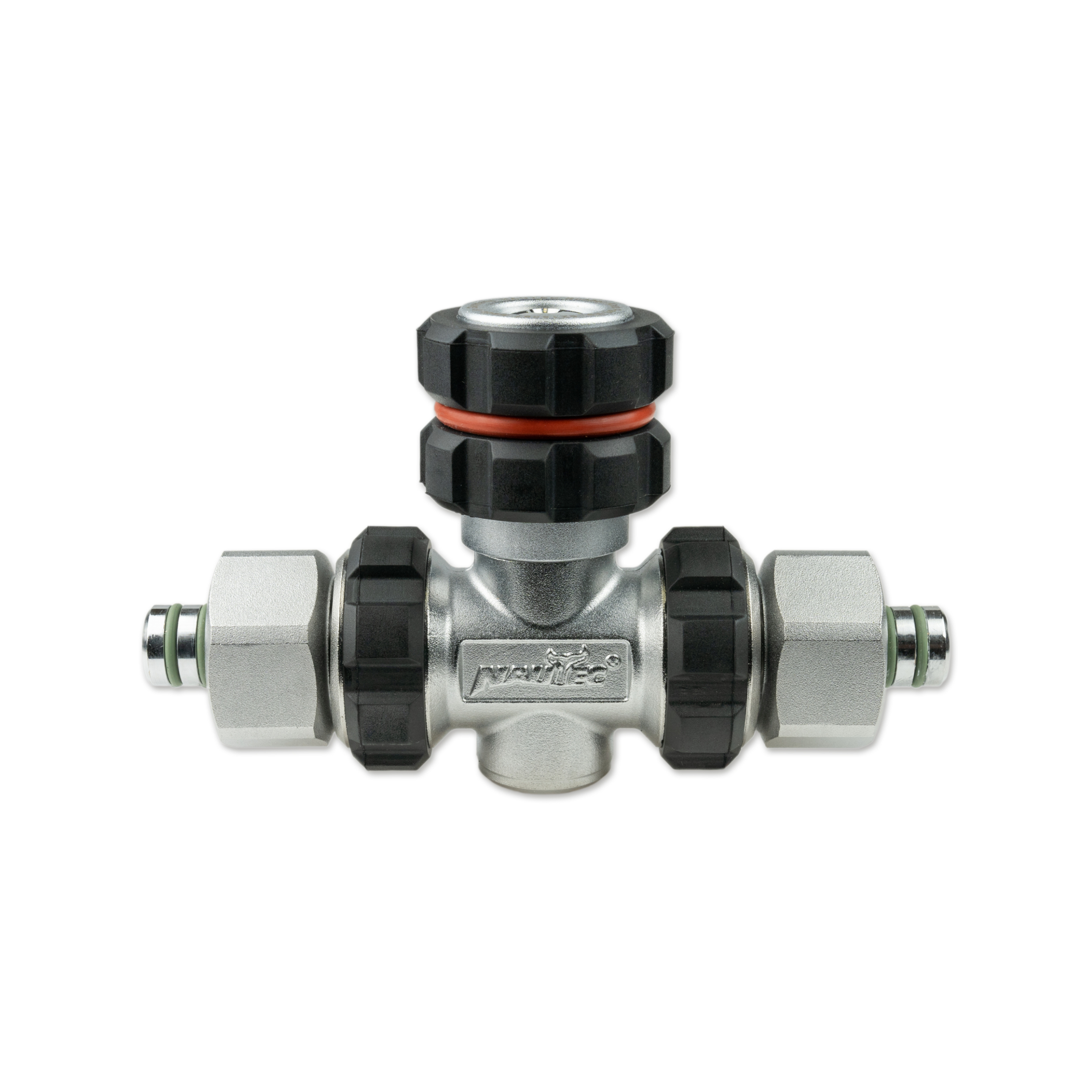

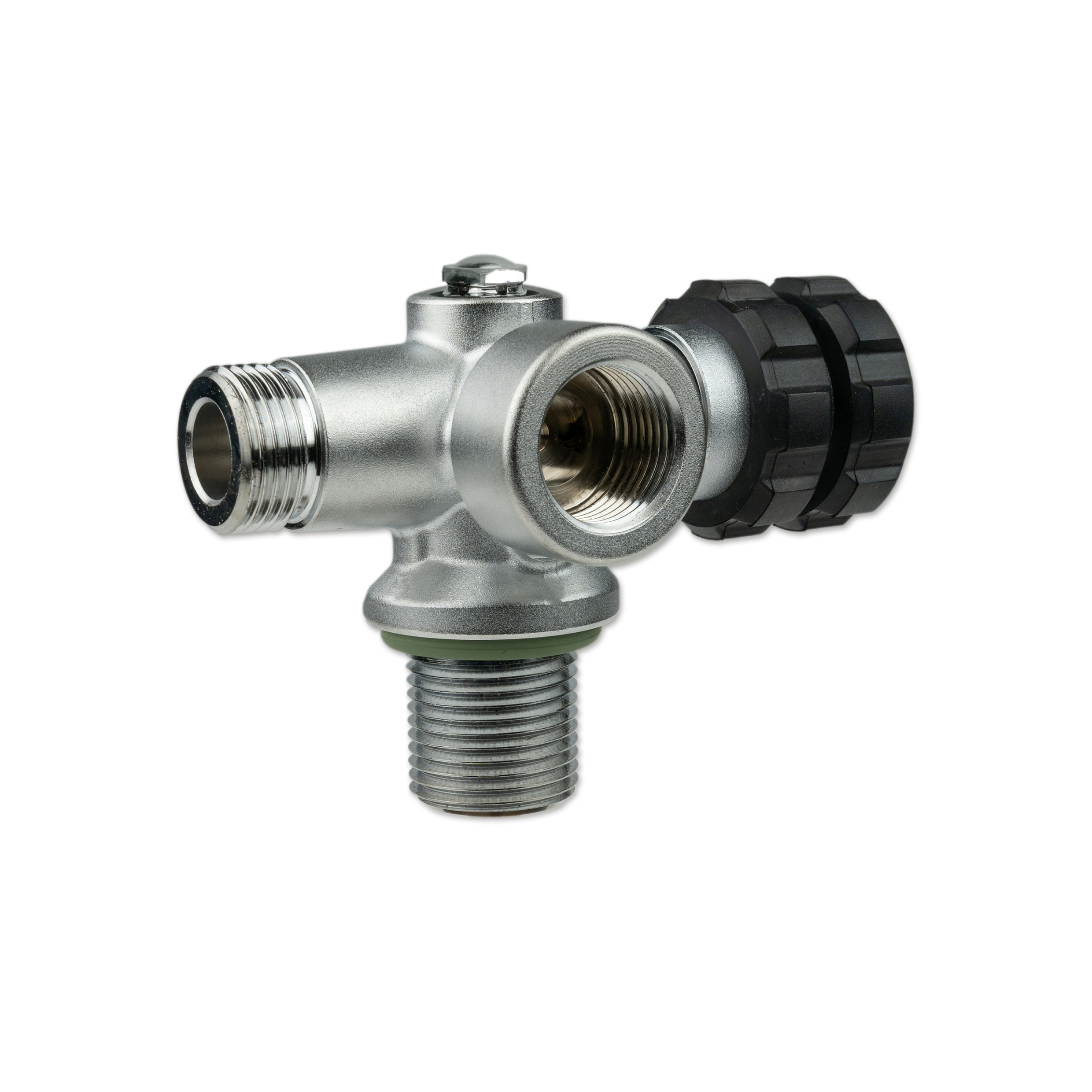

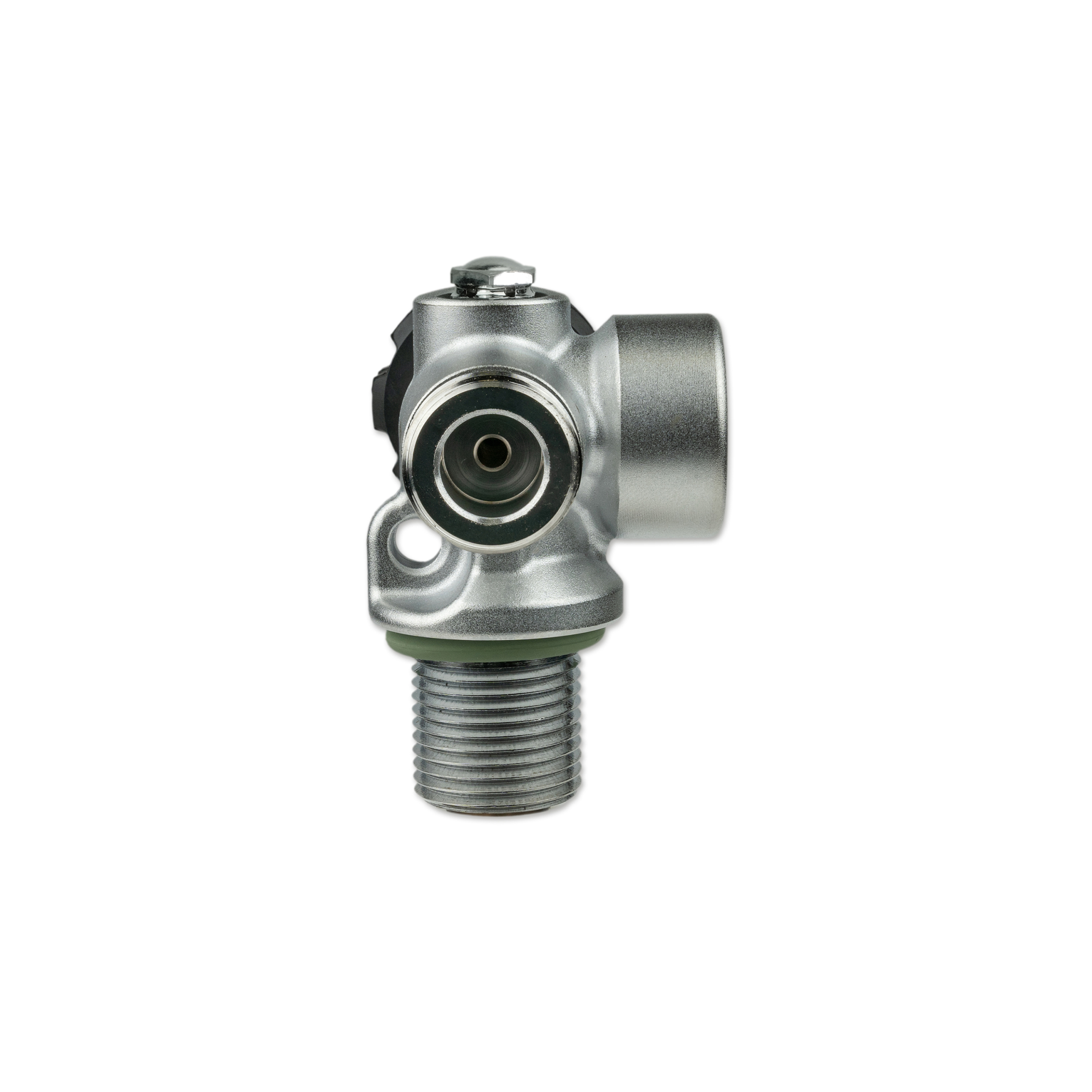

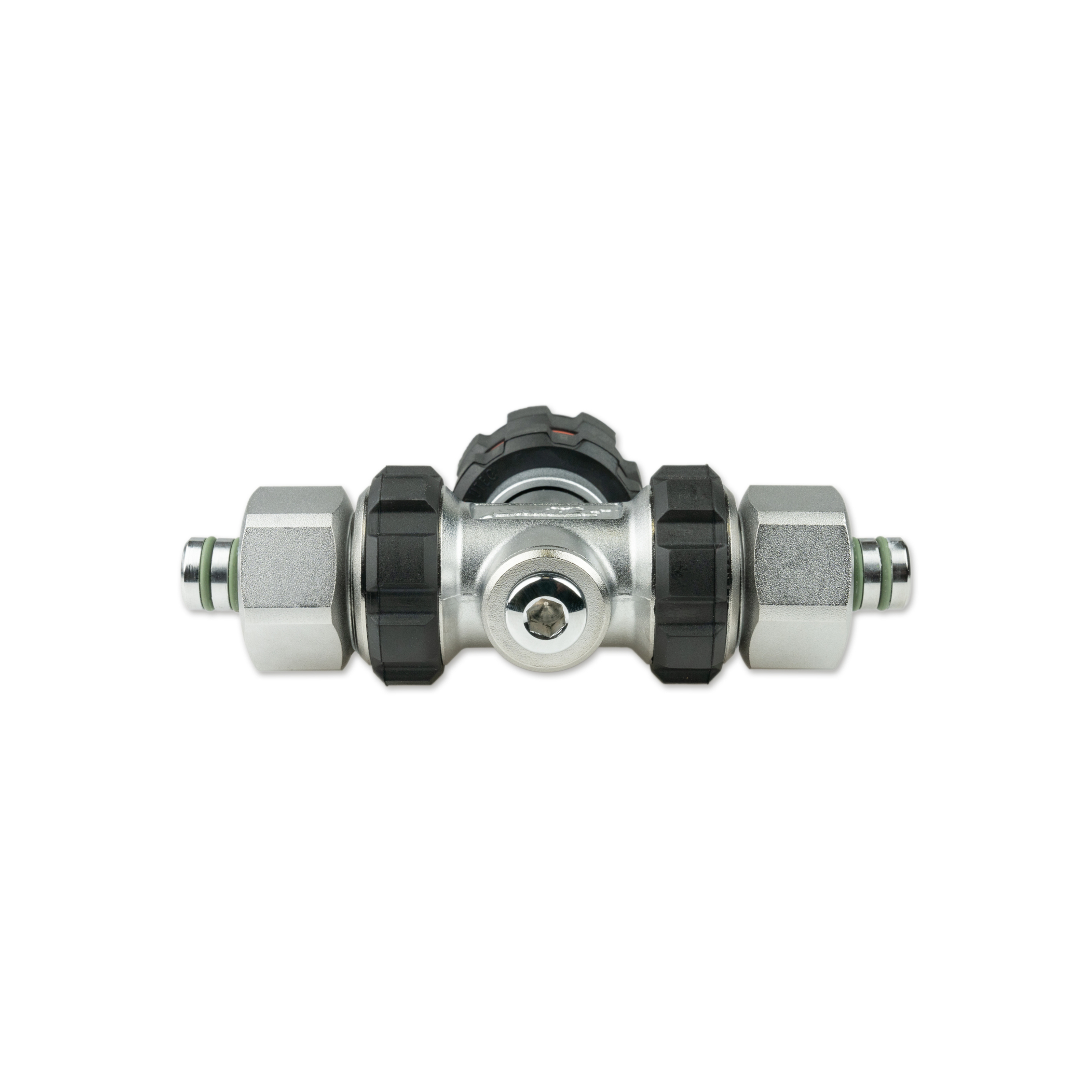

For compressed air double cylinders with flange diameters of 140 or 171 mm, 232 bar. A pro valve trim consisting of 2 Nautec SL-90° Extendable Valves (left und right), radially sealing TEC manifold, “Full-Metal-Core-Rubber Knobs”, two Nautec micro filters and two blind stops for the G 5/8” regulator connections. All valve outlets can be shut off separately, the gas flow can be safely turned off using the Nautec TEC manifold between two flanges. Located opposite the hand wheel, is a connection port for a stub pressure gauge or a dive computer transmitter with 7/16″ connection thread.

The valve trim is 100 % oxygen-compatible and LEAD FREE.

Attention! Do not attempt to repair NAUTEC-valves yourself. Unauthorized repair or tampering is hazardous and WILL VOID your warranty and NAUTEC liability. Maintenance and repairs by NAUTEC trained experts only!
